Creating virtual ports in OSC

Hi everyone,

Following the thread from HERE.

I was wondering how is it actually possible to create virtual ports directly in open stage control without using IAC on Mac ? (Probably a question to you @jean-emmanuel but everyone is more than welcome to answer).

Thank you for your attention !

Yes, simply write

port_name:virtual

instead of

port_name:3,4

That's pretty interesting !

So I set it up as follow:
midi_device

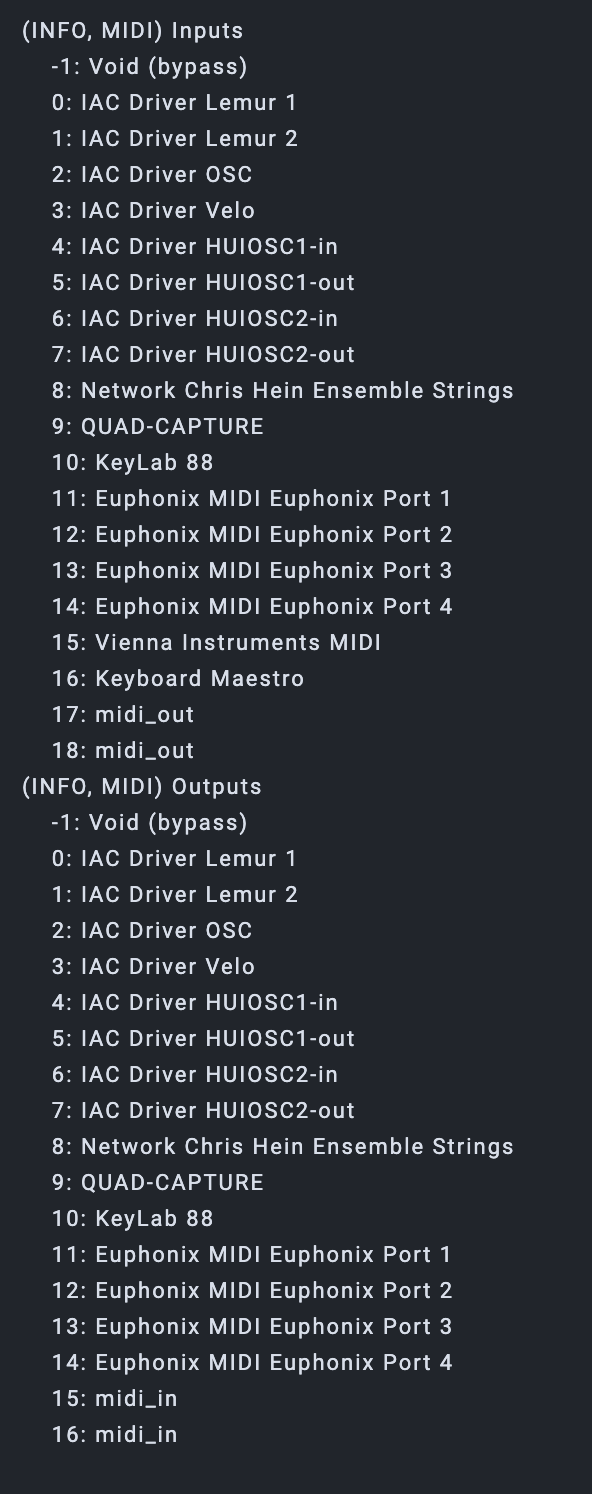

And on the list of MIDI devices I got the following:

Is it somehow possible to rename midi_out and midi_in by the actual name of the virtual MIDI device I created: my_midi ?

Hmm, it looks like a bug in the osx implementation or something I'm not aware of, this it what should appear:

15: my_midi:midi_out
# port number: device name:port name

What about the other ports, how are they displayed ?

As far as I know the other ports are well displayed (using IAC and some hardware gears).

When I added a second virtual MIDI device midi_out and midi_in appear twice but with different inputs and outputs:

Here are the two virtual MIDI devices:
Screenshot 2022-09-256

I'm also starting to think that there must be a bug somewhere :thinking:

Well, I assumed the port would be displayed similarly in osx and linux, but it seems I was wrong, I'll change this in next release and use the device name as suggested.
